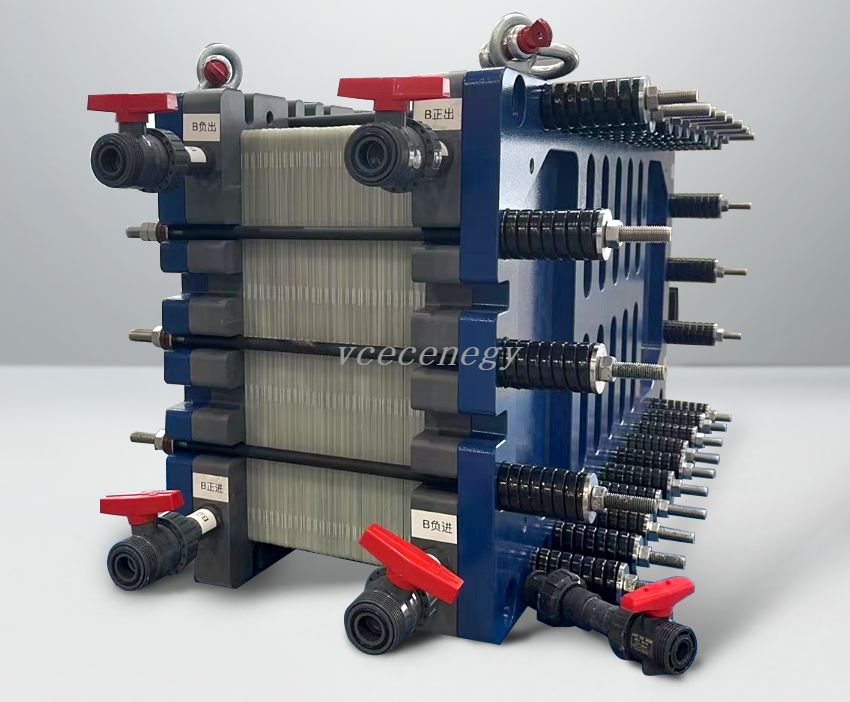

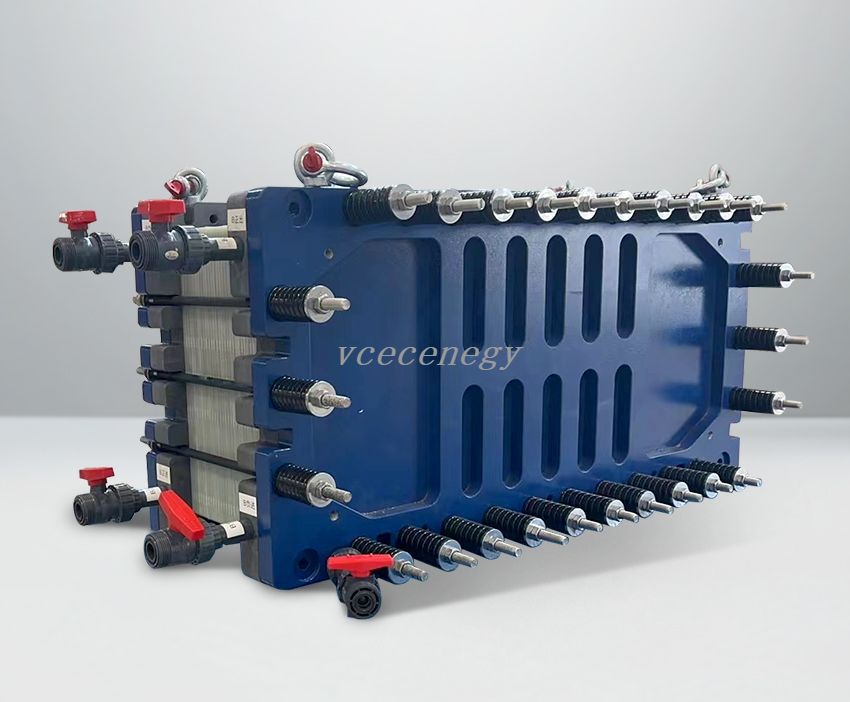

High Efficiency 16KW VRFB Cell Stack For Large Scale Energy Storage System

16KW Stack is a high effciency VRFB stack, DC effciency can reach over 81%
Availability:
Quantity:
Inquire Add to Basket

  • VRF-16K

  • VCEC

Rated Voltage

58VDC

Rated Current

276A DC

Rated Power

 16KW

Rated Energy Efficiency

83%

Maximum Power

110%

Working Temperature

-30~+60℃

Stack Weight

240kg

Stack Size

110cm×43cm×52cm

Charging Voltage Limit

73VDC

Discharging Voltage Limit

48VDC

Cycle Life

20000 Times

Storage Life

Unlimited
