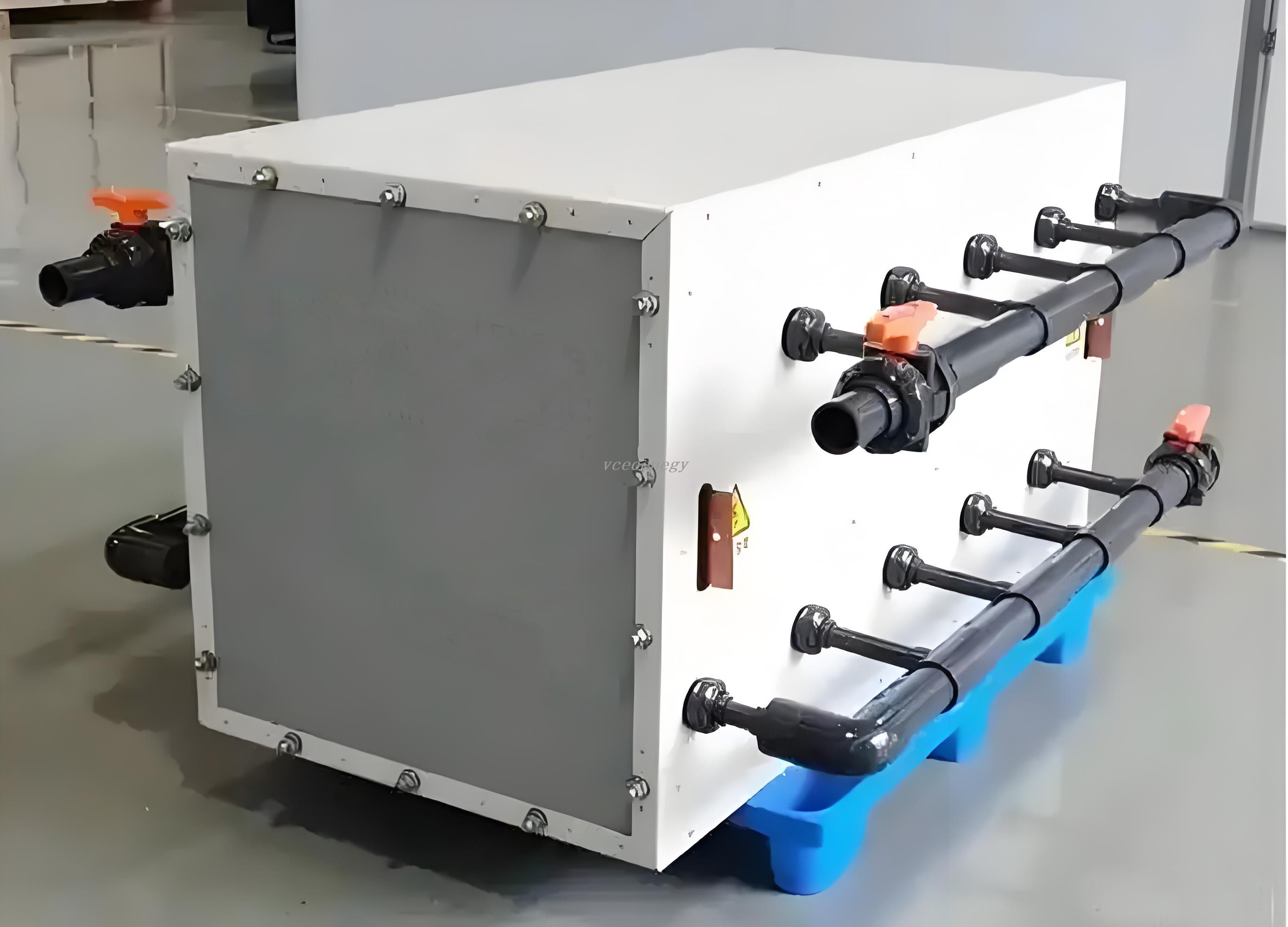

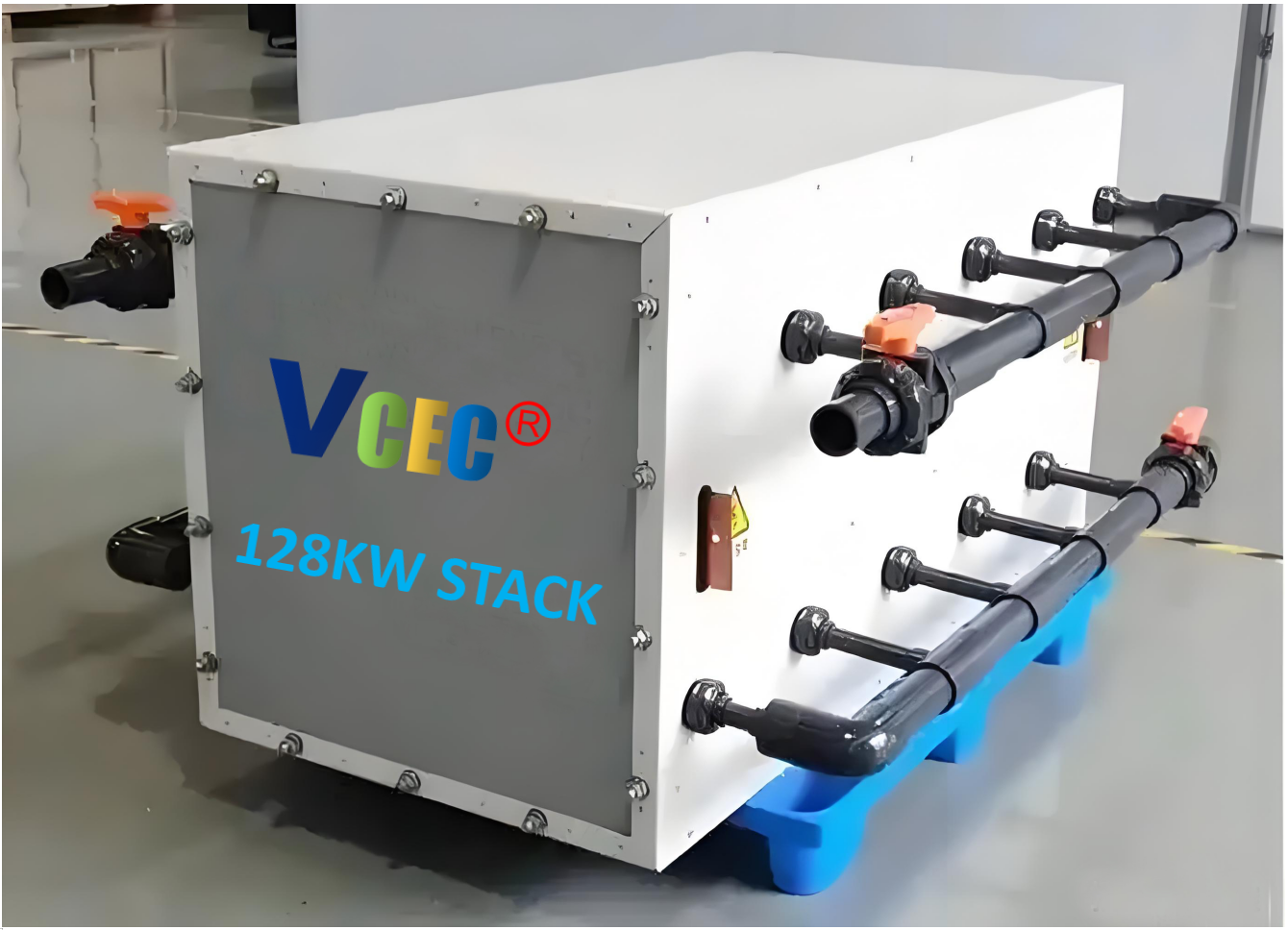

Max Power128KW Single VFB Stack

DC RATED POWER

128kW

RATED CURRENT

640 A

VOLTAGE RANGE

200-320 V

EFFICIENCY

≥80%

                  OVERCHARGING TIME

1.1 C RUNNING TIME 10 MINUTES

CYCLE LIFESPAN

≥20000 TIMES

    Sealing Performance Assurance

No Outer leakage, no inner leakage

Current Density

≥180mA/cm²

Rated Power Density

240mW cm-2(or 118WL-1 )

Running Temperature

-10-45℃

              Dimension of Appearance

79 x 85 x 160 cm

Sealing Method

Laser Fully Welding Seal

Weight

1.6 Tons

Flow Rate

             384L/Min..
