| Quantity: | |
|---|---|
VRFB-50
VCEC
Specification

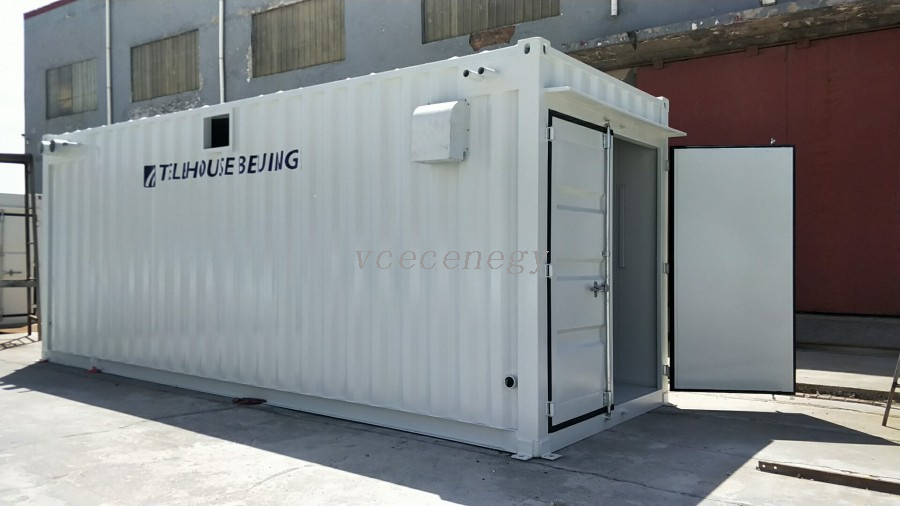

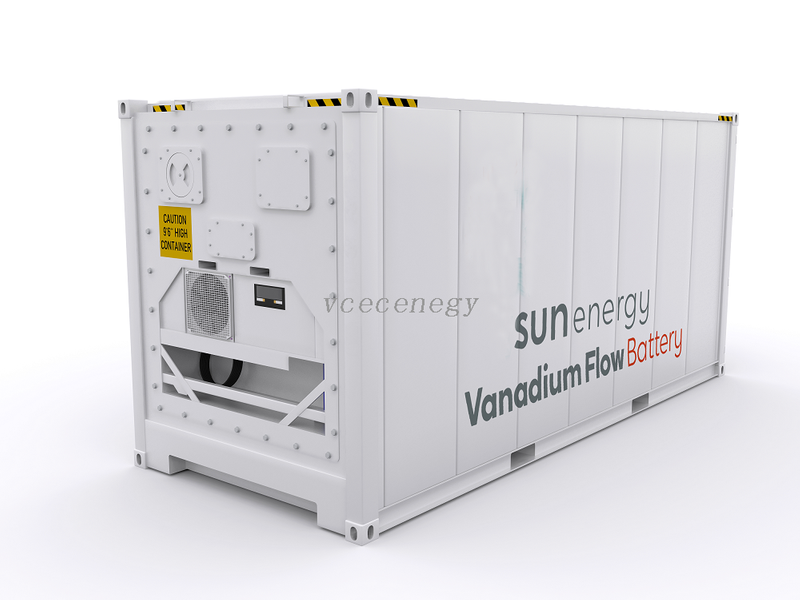

50kW/250kWh Containerized Energy Storage System | |
Model | PS-50-A |
Rated Energy（kWh） | 250 |
Rated power（kW） | 50 |
AC charging input （i.e. grid or diesel for charging） | Three-phase 380Vac, 50Hz |
DC output voltage （Vdc） | 50 |
Battery pack voltage range（Vdc） | 104-161 |
Battery pack rated voltage （Vdc） | 124.8 |
Maximum current（A） | 480 |
Depth of discharge （%） | 100 |
Ambient temperature （℃） | -30-45 |
Communication Interface | RS485 / Ethernet |
Communication protocol | ModbusTCP / Modbus RTU |
Occupation size （L×W×H） | 12m×3m×4m (40FT Container) |
Total weight（t） | 40 |
Shipping weight（t） | 20 |
Components List
Part Name | Description | Specification |
1 | Stack | 25kW single stack |
2 | Electrolyte | 1.7mol/L ，Sulphur acid chemical system |
3 | Circulation Module | 50kW/250kWh system's circulation module ，including temperature control device |
4 | Electrolyte Tank | PPH ，horizontal type |
5 | BMS | System's battery management device |
6 | Battery Container | 40 feet high container |
7 |
Electrical System | 50kW PCS, power distribution system, power cable and accessories |
