Automation Vanadium Electrolyte Production Equipment for Different Capacity

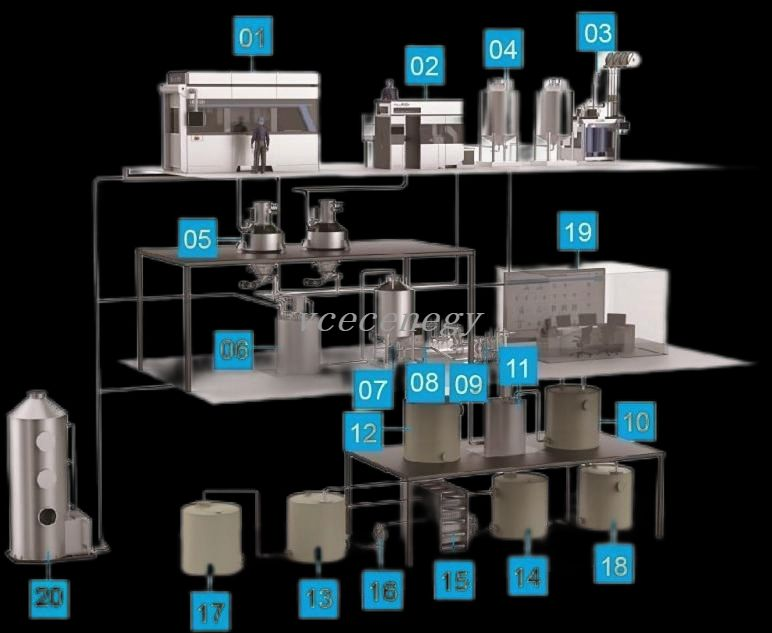

01 Automatic ton bag unpacking machine     11 Stack (activated electrolyte)

02 Automatic small bag unpacking machine 12 storage tank (activated electrolyte)

03 Fully automatic solution opening and feeding machine

13 circulating tank (positive electrode)

04 Liquid metering tank (DIW)             05 Powder metering tank

06 reactor (raw electrolyte)              07 Storage tank (raw electrolyte)

08 Temperature control system         09 Coarse and fine filtration device

10 storage tank (raw electrolyte)         14 Circulating tank (negative electrode)

15 Electrode device (electrode stack) 16 Circulating pump

17 finished cans (positive electrode)   18 finished cans (negative electrode)

19 Control center                                    20 washing tower (waste gas, acid mist)
