VRF-32KW
VCEC

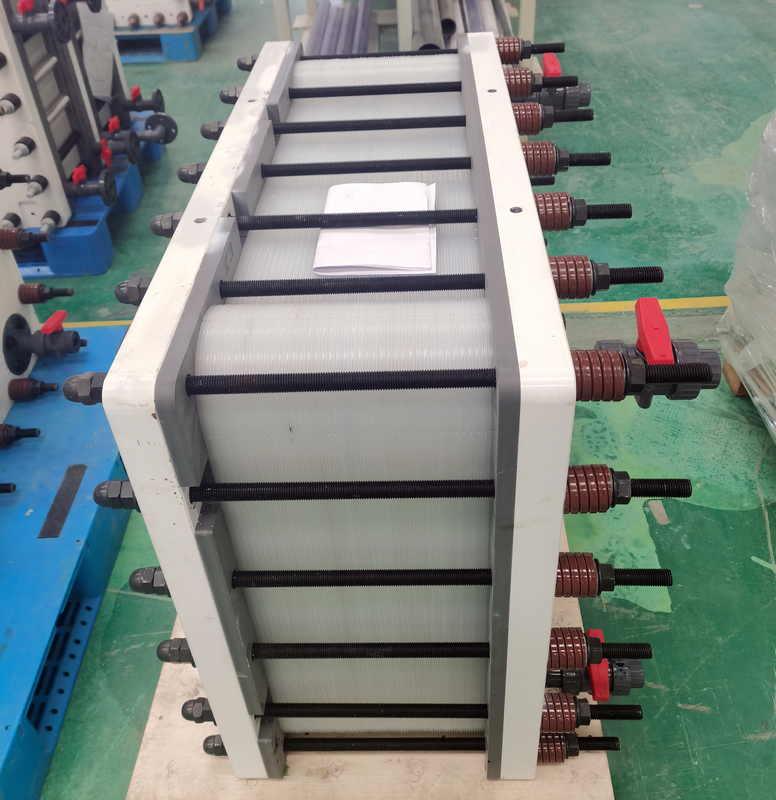

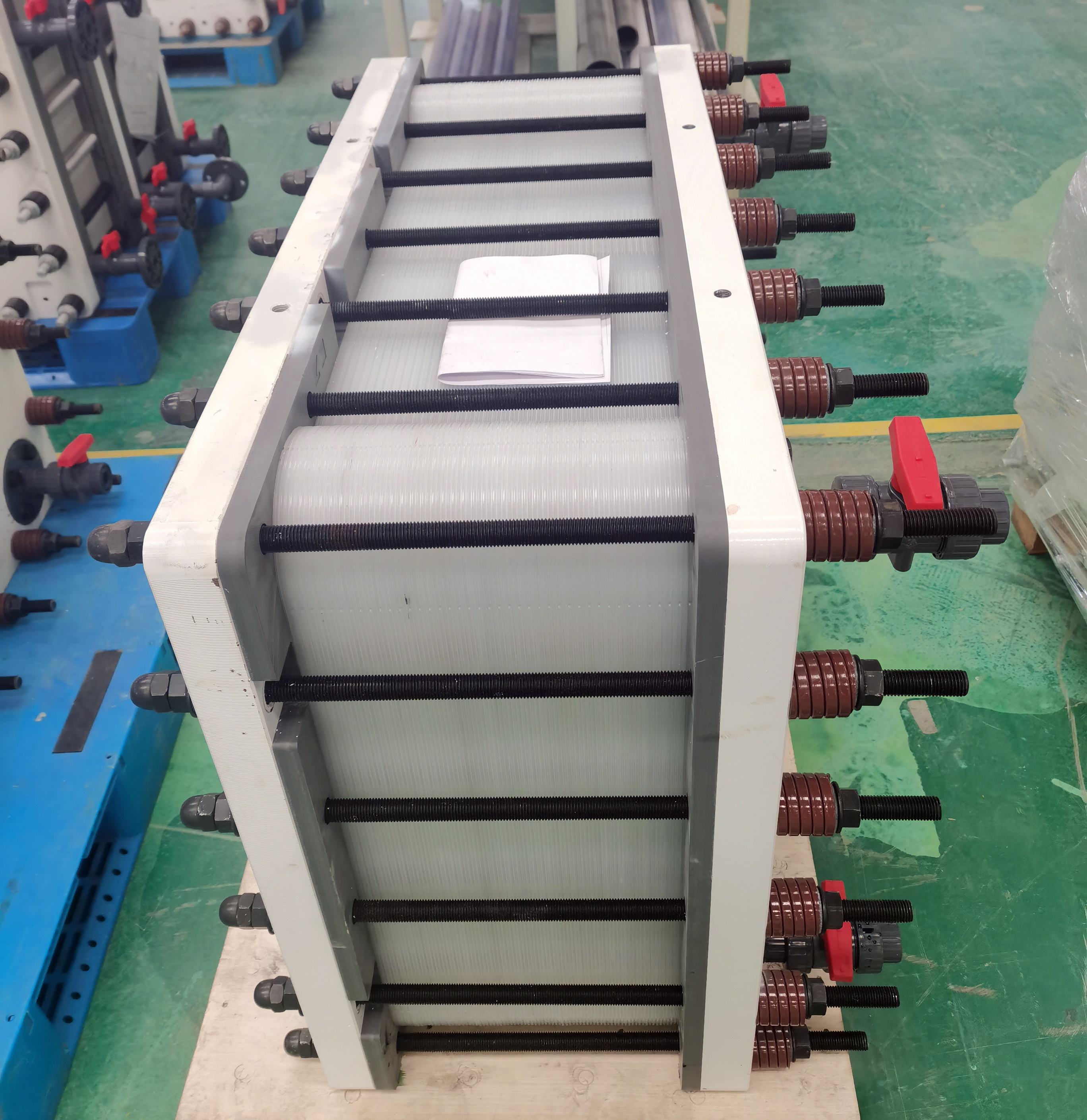

Vanadium Redox Flow Battery Stack
Model | VRB-32 | VRB-25 | VRB-20 | Unit | |
Rated power | 32 | 25 | 20 | kW | |
Overload capacity / SOC range | 110%/0- 100% | 110%/0- 100% | 110%/0- 100% | ||
Rated voltage | 80 | 62.5 | 50 | V | |
Voltage range | 64-99.2 | 50-77.5 | 40-62 | V | |
Maximum current of rated power | 500 | 500 | 500 | A | |
Electrolyte concentration | 1.7 | 1.7 | 1.7 | mol/L | |
Electrolyte flow rate (min) | 5.5 | 5 | 4 | m3/h | |
Electrolyte flow rate (max) | 7.5 | 7 | 6 | m3/h | |
Electrolyte interface diameter | pipe | 25mm×2 | 25mm×2 | 25mm×1 | mm |
Inlet electrolyte pressure | ≤300 | ≤300 | ≤300 | kPa | |
Positive and negative pressure deviation | ≤10 | ≤10 | ≤10 | kPa | |
Size (D ×W ×H) | 1105×1017×685 | 1105×941×685 | 1105×706×685 | mm | |
Weight (without electrolyte) | ~1350 | ~1300 | ~1100 | kg | |
Weight (including electrolyte) | ~1450 | ~1400 | ~1250 | kg | |
Install moving tool | Forklift truck | ||||
Operating ambient temperature | 0-45 | ℃ | |||
Storage ambient temperature | 0-45 | ℃ | |||
Humidity | 0-95% ，without condensation | ||||
Altitude | ＜3500 | m | |||
